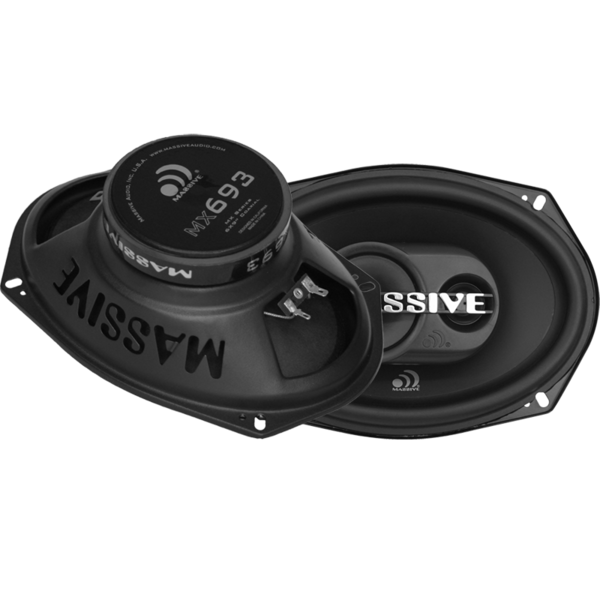

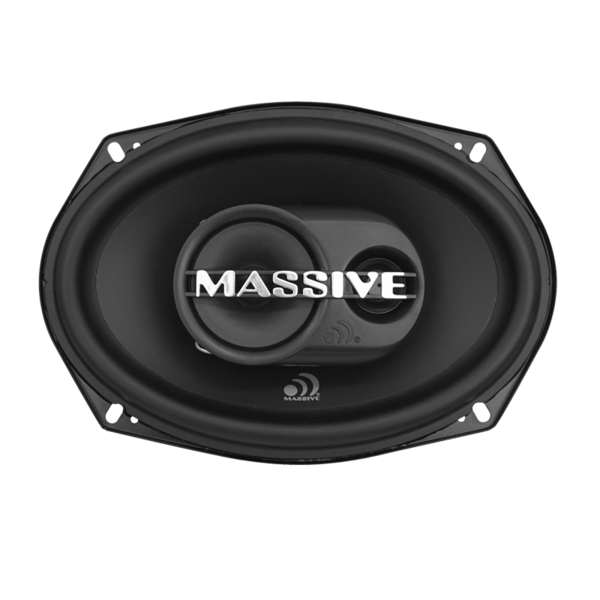

MX693 – Coaxial Speaker


At the bottom the MX693 Series 3-Way Coaxial Speaker sits a high powered Flux Y30 Strontium Ferrite Magnets that is contained by custom tooled heavy gage powered coated steel baskets with the word “MASSIVE” stamped right into the steel. In the center of a MX693 speaker sits a 1” KSV coil that floats on a poly fiber spider. With custom rubber surrounds, laminated paper cones, a phase optimized 12Db crossover with smooth 13mm dome tweeters and 66mm mid-range these are highly value priced and are designed to fit almost any ride.




  • Heavy Gauge Steel Powder Coated Basket With MASSIVE Punched Logo.
  • Custom Making Massive Logo 3 Way Tweeter Plate
  • High-Energy Y30 Magnets Assures Sufficient Magnet Force Needed
  • For High Sensitivity And Accurate Sound Reproduction
  • Two Piece Custom Paintable Metal Grills
  • Rugged Construction To Withstand Harsh Mobile Environment
  • Custom Laminated Paper Cone With Butyl Rubber Surround
  • High Quality Cloth Spider With Polyester Fiber
  • 1” High Temperature KSV Voice Coil


Speaker Size 6×9″
Tweeter 13mm PEI + 66mm (Mid)
Cone Laminated Paper
Sensitivity 93.6dB
Frequency 60-20KHz
RMS Power 60 watts
Peak Power 250 watts
Impedance 4 Ohm
Basket Heavy Gauge Steel
Depth 75 mm
