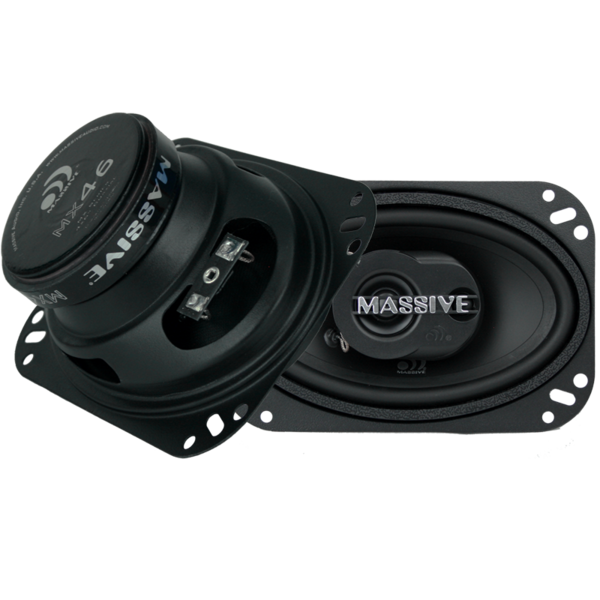

MX46 – Coaxial Speaker


At the bottom the MX46 Series Coaxial Speaker sits a high powered Flux Y30 Strontium Ferrite Magnets that is contained by custom tooled heavy gage powered coated steel baskets with the word “MASSIVE” stamped right into the steel. In the center of a MX46 speaker sits a 1” KSV coil that floats on a poly fiber spider. With custom rubber surrounds, laminated paper cones, a phase optimized 12dB crossover with smooth 13mm dome tweeters these are highly value priced and are designed to fit almost any ride.




  • Heavy Gauge Steel Powder Coated Basket
  • Custom Making Massive Logo 3 Way Tweeter Plate
  • High-Energy Y30 Magnets Assures Sufficient Magnet Force Needed
  • For High Sensitivity And Accurate Sound Reproduction
  • Rugged Construction To Withstand Harsh Mobile Environment
  • Custom Laminated Paper Cone With Butyl Rubber Surround
  • High Quality Cloth Spider With Polyester Fiber
  • 1” High Temperature KSV Voice Coil
  • 13mm Hard Diaphragm Tweeter With Ferro Fluid Cooled V.C.


Speaker Size 4×6″
Tweeter 13mm PEI
Cone Laminated Paper
Sensitivity 90.1dB
Frequency 95-20KHz
RMS Power 40 watts
Peak Power 180 watts
Impedance 4 Ohm
Basket Heavy Gauge Steel
Depth 54 mm
