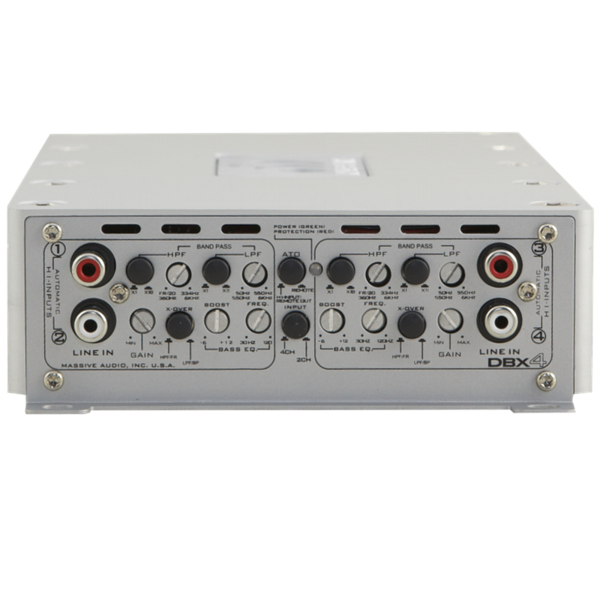

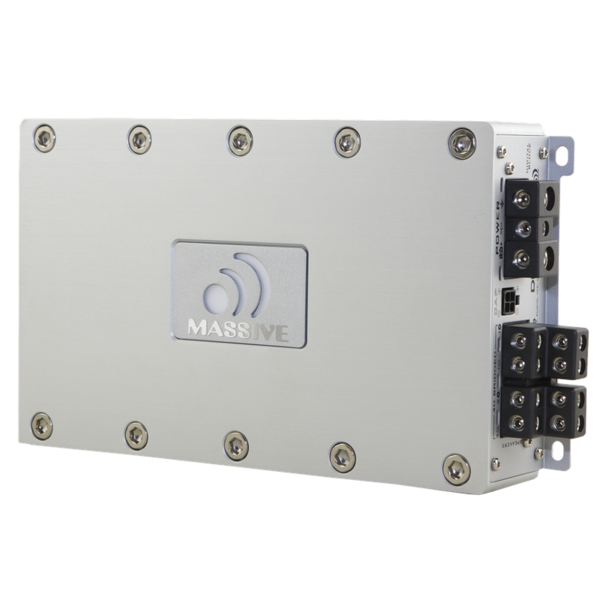

DBX4 – 4 Ch Full Range Digital Amplifier (Built-In OEM Line Converter)

The DBX4 is currently the most powerful CEA Certified full range digital four channel amplifier on the market. It is remarkably compact for a 2000W amplifier with dimensions that make installation in any location possible. Its digital design allows for high efficiency via its low power consumption while providing clear signal with low distortion.

To truly appreciate this amplifier all one has to do is examine its many high tech features. The Low Pass crossover is adjustable from 50Hz – 6 KHz with the use of the X11 switch. The High Pass crossover is adjustable from 20Hz – 45 KHz or 360Hz – 6 KHz. This permits HP/LP/Band pass configurations that allow the use of raw drives without passive power robbing crossovers. The DBX4 has a single band parametric equalizer (-6Db~+ 12Db @ 30Hz – 120Hz). Built in OEM integration, via the supplied RCA “bullet” adaptors, allow the installer to wire directly into the RCA inputs which in turn activates the ‘Auto Turn-On’ feature.

Look close and you’ll see a “docking port” on the end cap. This allows the optional DBX4 Farad Rail Capacitor to connect directly to the power supply for improved dynamics and power balance. Massive Audio has raised the bar once again with the Digital Quad Powered DBX4!




  • Extreme Power in a Small Footprint
  • Low Distortion Full Band Width for Sound Quality Tuning
  • D-Bit Technology Full Range Digital design
  • Built-In Noise Reduction Circuitry
  • Mil Spec Double Sided PCB with SMD Parts
  • Full Mosfet with High Grade Switching Devices
  • World Wide standards compliant (RoSH, E-mark, CEA-2006, CE)
  • Auto detect Hi-Low input
  • Parametric Bass Equalizer with -6dB + 12dB SQ Tuning
  • Full Hi-Low-Bandpass all channels crossover
  • Auto Sensing Music Turn-on
  • 12V Remote Out for External Devices
  • 2CH / 4CH Input Mode Switch
  • Rail Output Capacitor Booster (Rail Cap X) (Sold Separate / Optional)


RMS @ 2 Ohm Load 250W x 4
RMS @ 4 Ohm Load 230W x 4
RMS @ 4 Ohm Mono 500W x 2
Minimum Impedance 2 Ohm
THD <.3%
S/N 90 dB
Frequency Response 20Hz ~ 45KHz
Dimensions 48 x 150 x 239 mm
Bass Remote n/a
